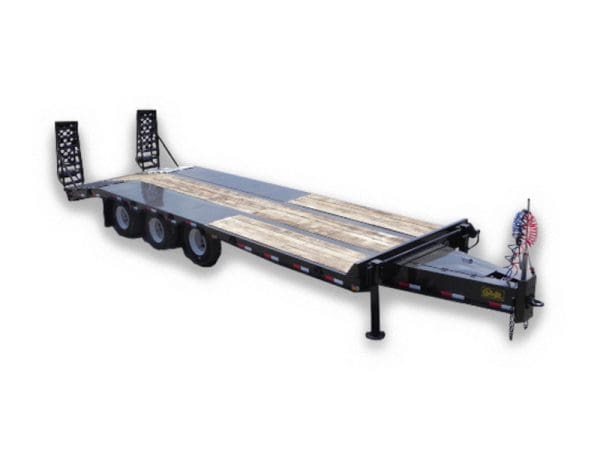

TT-30 • 30 Ton Tag Trailer Series

Description

TT-30 Tag Standard Features – 60,000# load capacity, 8’ 6″ wide, 3″ lunette eye 3 position hitch, 8’ 6″ wide, 22 ‘ 6″ level load deck, 60? beaver tail, 33’ overall length. Deck height 34″, 2″ oak decking, load deck & beaver tail, steel plate above tires, 6 “D” rings, 3 per side, 24″ x 60″ spring assisted manual ramps. Hutch H-9700 spring suspension, 3 each 22,500# axles, 12.25″ x 7.5″ air brakes w/ABS system, 235/75 R 17.5 tires, 8 stud hubs, open storage in draw bar, twin screw type landing legs. Modular wire harness, rubber mounted sealed lights, conspicuity marking tape, as per DOT requirements.

Colors available, Red, New Cat Yellow, Black, Orange, Dark Blue, Dark Green & Light Gray.

Available options: • Electric over hydraulic ramps • Additional “D” rings • Lockable storage • Self cleaning beaver tail & ramps • Other suspensions

We welcome custom requests – call the factory for more information.

ABS Brakes on all Domestic sales
